Description

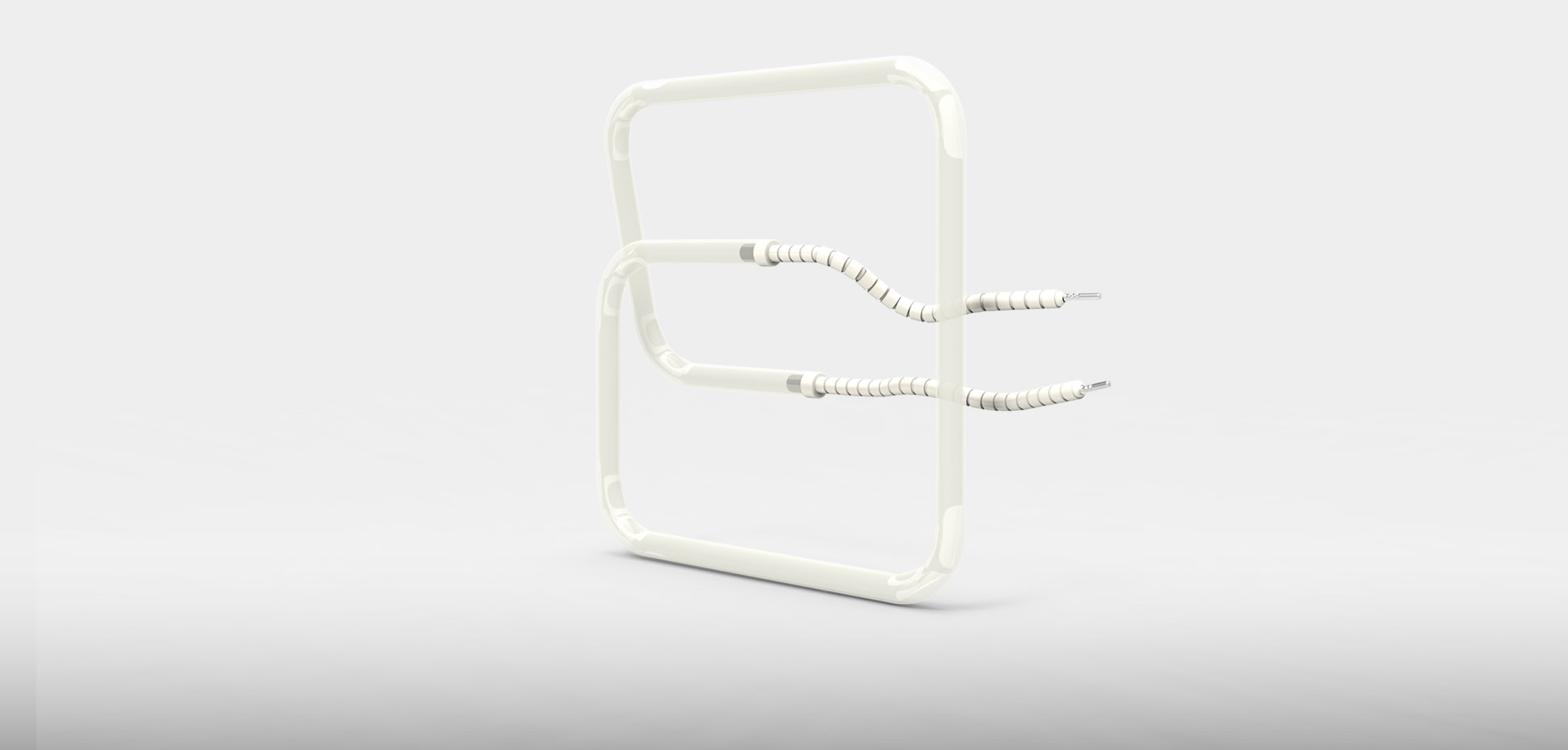

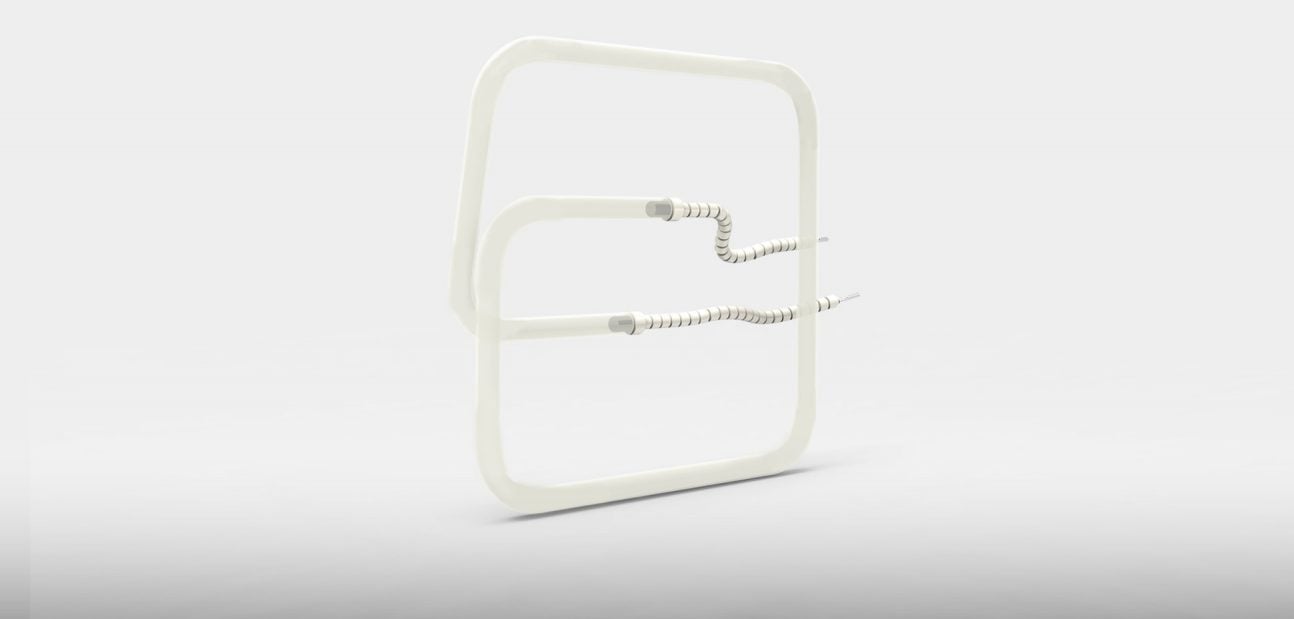

Single Tube Quartz Infrared Heating Element 150
A versatile infrared quartz heating element (150 – 650W) providing an instant heat response for a variety of industrial process applications. These elements are particularly effective for manufacturing processes where a rapid heater response is required.
Available: 150 – 650W

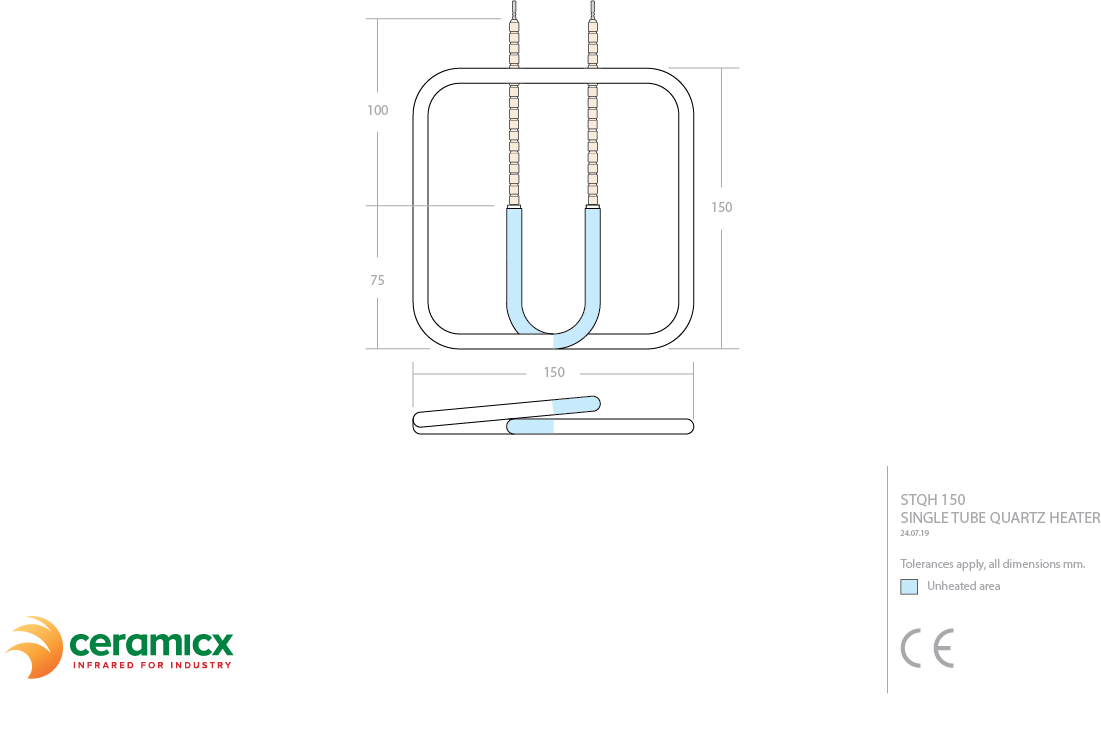

Size: 150 x 150mm
Useful wavelength range: 1.5 – 8 microns.
Iron-chrome aluminium resistance wire.
Heater Voltage: 230V as standard. (other voltages available on request)
Recommended radiation distance from heater is 100mm to 200mm.
Supplied with 100mm ceramic beaded power leads.
